What a shock does (and doesn't)
A shock absorber controls how fast the suspension moves. It doesn't hold the truck up. That's the springs' job (unless the spring sits on the shock, as on a coilover). A good shock keeps the tire on the ground over bumps and stops the heavy front end from pitching and wallowing, especially with a diesel up front or a trailer behind.
Length and travel after a lift
Lifting moves the ride height, so the shock now works in a different part of its stroke. If it's too short, it becomes the droop stop and gets yanked fully extended over every dip. If it's too long, it can bottom out before the bump stop does its job. Either one is hard on the shock and its mounts. When you change height:
- Choose shocks built for your lift height and mounting points, not just "fits 2500."
- Check the travel at both ends: shock extended at full droop, and bump stop contacting before the shock bottoms.
- Check body clearance through the full travel and at full steering lock.
Shock construction, in plain terms
Twin-tube
An inner working tube inside an outer reserve tube. It's common as original equipment and usually the budget option.
Monotube
A single tube with the piston working in it and a gas charge kept separate from the oil. It's common on performance and off-road shocks.
Emulsion
Gas and oil share the same space. It's simpler and cheaper but can fade sooner on long rough stretches.
Reservoir
Extra oil and the gas charge sit in a separate reservoir, either piggyback or on a hose. More oil means it handles heat better on washboard and long trail days, but it's harder to package.
Bigger shock bodies hold more oil but need more room. On a leveled truck, a large-body shock can interfere with a coil spacer. Valving has to suit the truck's weight and spring rates: a Cummins truck with a steel bumper needs different damping than a light gas truck, even with the same lift.
Coilovers and dual-rate springs
A coilover puts the spring on the shock body, so one unit carries the weight and controls the motion. You can set ride height with the spring perch and tune the ride with spring rates and valving. A dual-rate setup stacks two springs, a softer one for small bumps and a firmer one that takes over deeper in the travel.

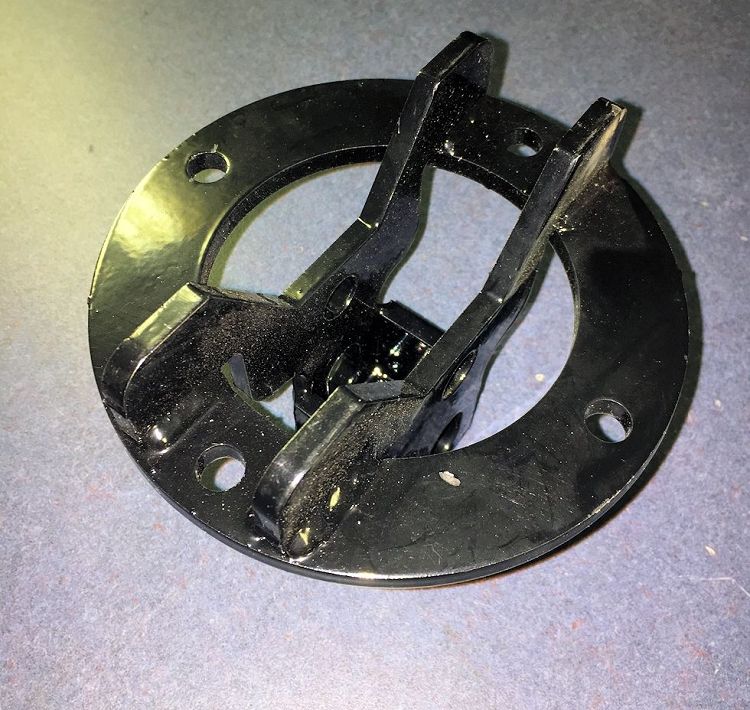

On a Ram HD, coilovers are a full system, not a bolt-on shock swap. You need upper mounts or towers, lower mounts, the right lengths for your lift and suitable bump stops. Dodge Off Road's Dual Rate Coilovers page covers its bolt-in coilover packages for 1994-2012 trucks. The options and fitment are listed there.
Bump stops
The bump stop is the last line of defense at full compression. After a lift it often needs extending so the tire doesn't hit the body and the shock doesn't bottom out. Off-road builds sometimes use hydraulic or air bump stops, which slow the last bit of travel progressively instead of with a hard hit.
Sway bars and end links
The sway bar ties the two sides together to cut body roll, which matters a lot on a tall truck with a camper or trailer. Lifting changes the angle of the end links, and links at the wrong angle bind or wear quickly. Longer or adjustable end links bring the bar back to a sensible angle. Off-road, disconnecting the front bar lets the axle articulate more. Power Wagons do this from the factory with an electronic disconnect (see the Power Wagon notes).
Signs a shock is done
- The truck keeps bouncing after a dip, or the nose porpoises on the highway.
- Oil weeping down the body (a light film can be normal; wet and dirty isn't).
- Clunks from loose or worn mounting bushings.
- Cupped tire wear that can't be blamed on alignment.
Related parts at Dodge Off Road
- Suspension: coilovers, air bag systems and bump systems
- Sway bar end links, for example DOR Sway Bar End Links 14-up
- By truck: 1994-2002, 2003-2009, 2010-2012, 2013-up
Last reviewed 2026-10-19. General information for planning. Follow your service information and parts maker's instructions.
